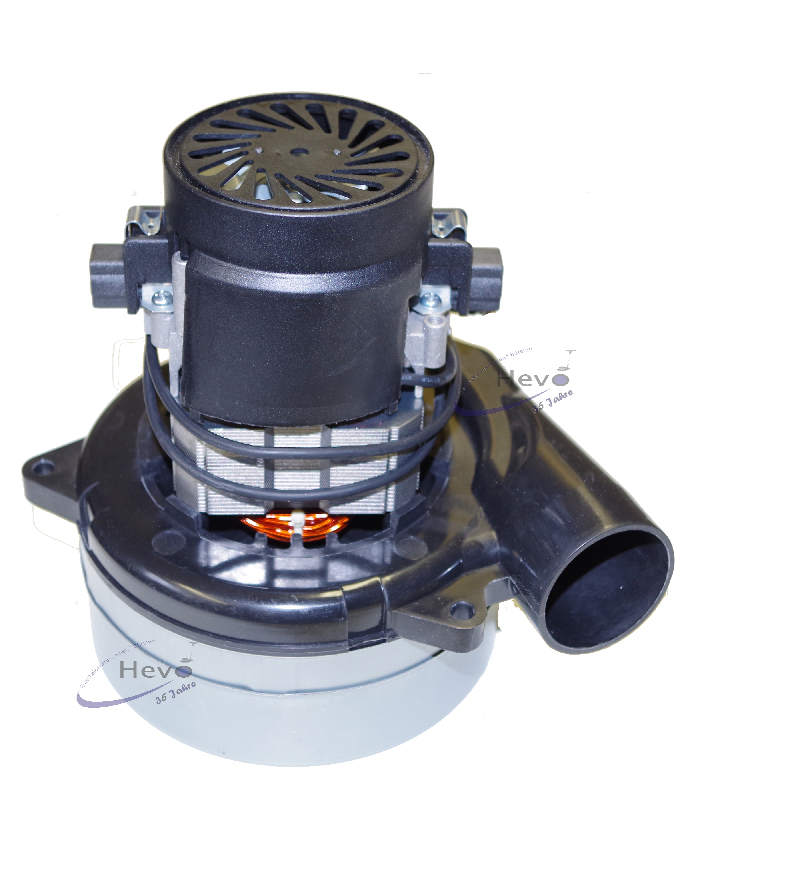

Vacuum motor 36 V 600 W two stage + tangential
For wet and dry vacuum cleaner.
Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Tangential air outlet, i.e. The intake air is blown out through the side tube.

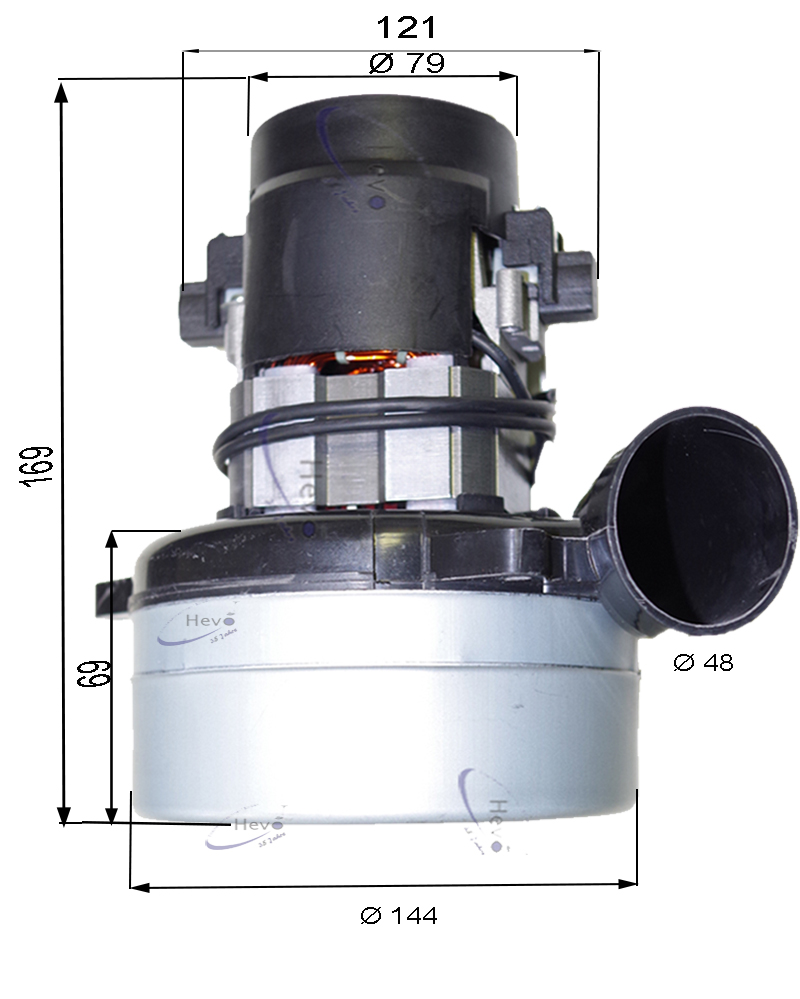

Overall height 168 mm, height 69 mm turbine, turbine diameter 144 mm.
Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Tangential air outlet, i.e. The intake air is blown out through the side tube.
Overall height 168 mm, height 69 mm turbine, turbine diameter 144 mm.
| Motor Type | SMO.116 158-01 |
| Rating Voltage（V） | 36 |
| Rating Frequency（Hz） | - |
| Rating Input Power（W） | 600 |
| Maximal Airflow（M³/min） | 1.9 |
| Maximal Suction（Kpa） | 16 |
| Maximal Air Power（W） | 130 |
| Maximal Efficiency（%） | 25% |
| Noise（M）（dBA） | ≤87 |
| Insulation Class | F |
| Lifespan hours | >500 |
-
Brand: Hevo-Pro-Line®
Manufacturer/EU Importer Responsible person
Fred Hellmann
Daimlerstr. 4
35447 Reiskirchen
Reiskirchen, Germany
Phone: +49 (0)6408 9599-0
Fax: +49 (0)6408 959910
Whatsapp +49 (0)15234108118
info@hevo-shop.com
Product safety:
All suction motors are safe to use when used properly. There are no known risks.
Warning:Please note that repairs may only be carried out by specialised personnel.
Installed suction motors will not be taken back.
Traceability:
We guarantee fast and complete traceability.
All suction motors fulfil the (EU) 2023/988 (GPSR), as well as the Reach and Rohs regulations.
