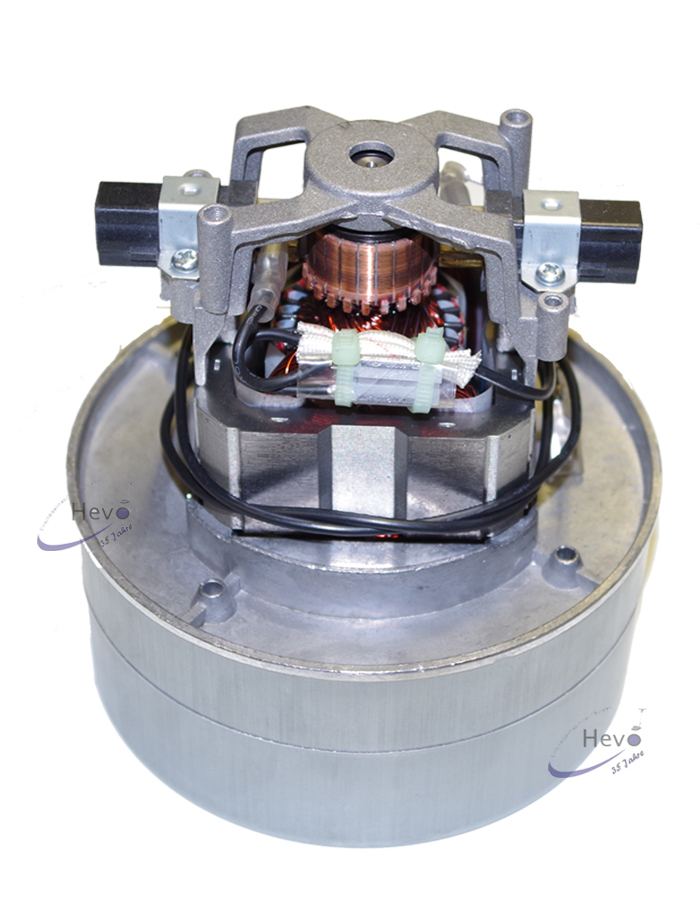

Vacuum motor AstroVac SR - 34
Only for dry vacuum cleaners
Air-Vaccum motor i.e.intake air that is the cooling air at the same time, only suitable for vacuum cleaners, TP = Thermal Protector cuts off by overheating.

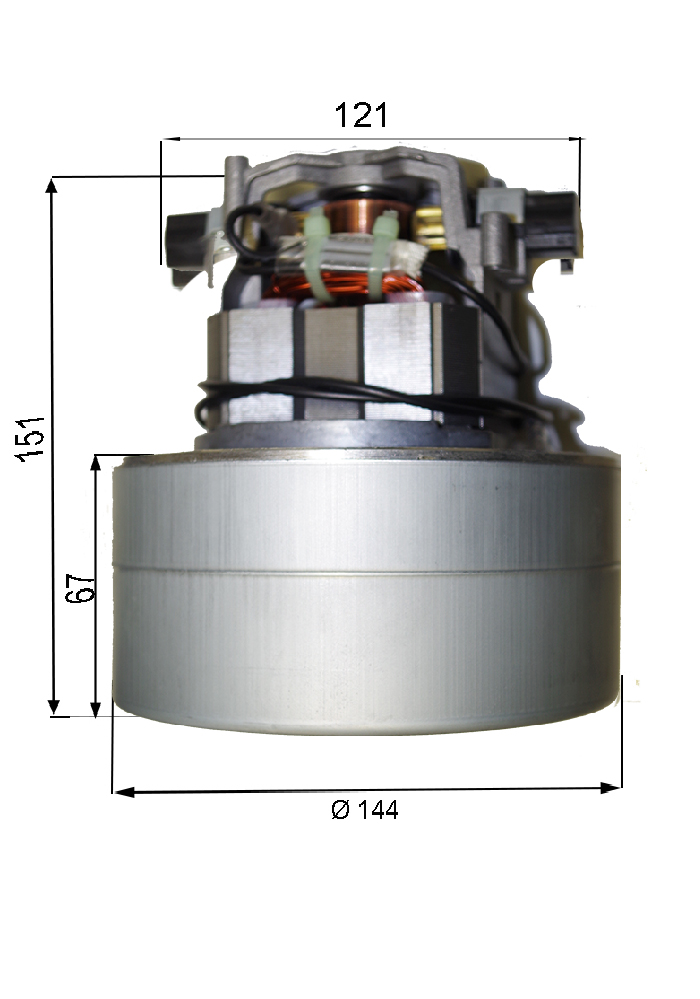

Overall height 151 mm, height 67 mm turbine, turbine diameter 144 mm.
This product is not an original spare part from the quoted manufacturer. Due to it is high quality the product is widely used by manufacturers, resellers and end users.
It is a product with the original manufacturer’s quality.
| Motor Type | SMO.116 111-00 |
| Rating Voltage（V） | 230 |
| Rating Frequency（Hz） | 50 |
| Rating Input Power（W） | 1100 |
| Maximal Airflow（M³/min） | 3.3 |
| Maximal Suction（Kpa） | 33 |
| Maximal Air Power（W) | 560 |
| Maximal Efficiency（%） | 35% |
| Noise（M）（dBA） | ≤96 |
| Insulation Class | B |
| Lifespan | >500 |
-
