Vacuum motor Columbus RA 55 K 40
For wet and dry vacuum cleaner.
TP = Thermal Protector, the engine shuts off when it overheats. Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Tangential air outlet, i.e. The intake air is blown out through the side tube.

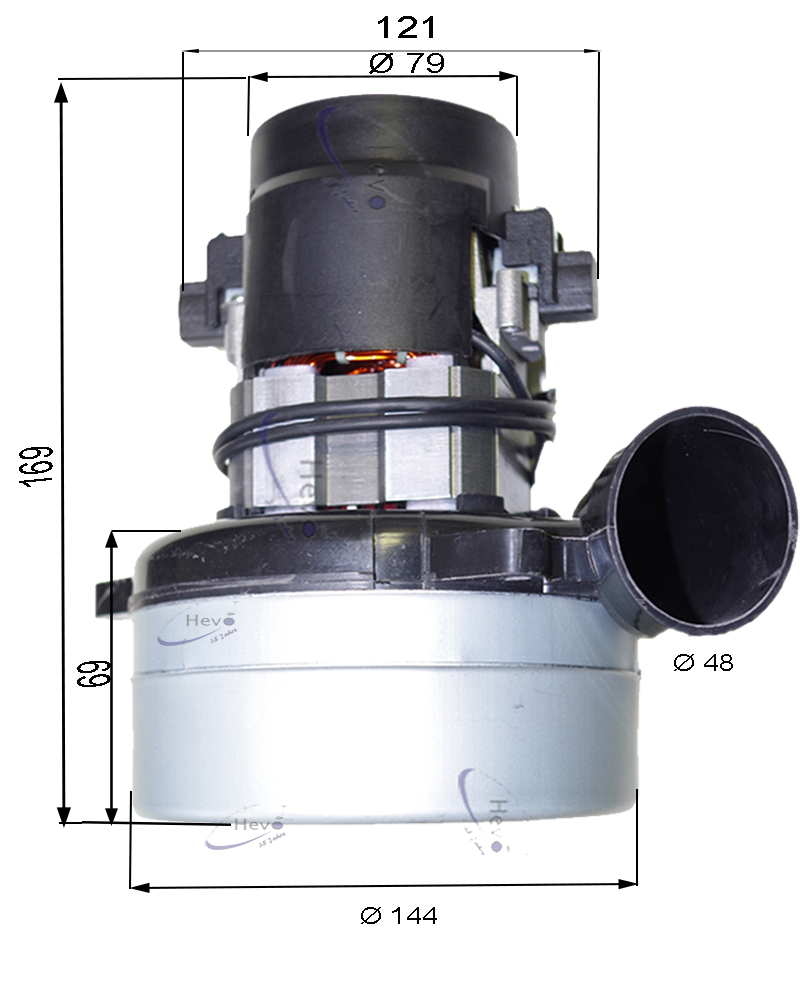

Overall height 168 mm, height 69 mm turbine, turbine diameter 144 mm.
This product is not an original spare part from the quoted manufacturer. Due to it is high quality the product is widely used by manufacturers, resellers and end users.
It is a product with the original manufacturer’s quality.
| Motor Type | SMO.116 213-50 |
| Rating Voltage（V） | 230 |
| Rating Frequency（Hz） | 50 |
| Rating Input Power（W） | 600 |
| Maximal Airflow（M³/min） | 2.2 |
| Maximal Suction（Kpa） | 22 |
| Maximal Air Power（W） | 450 |
| Maximal Efficiency（%） | 30% |
| Noise（M）（dBA） | ≤89 |
| Insulation Class | B |
| Lifespan | >500 |
