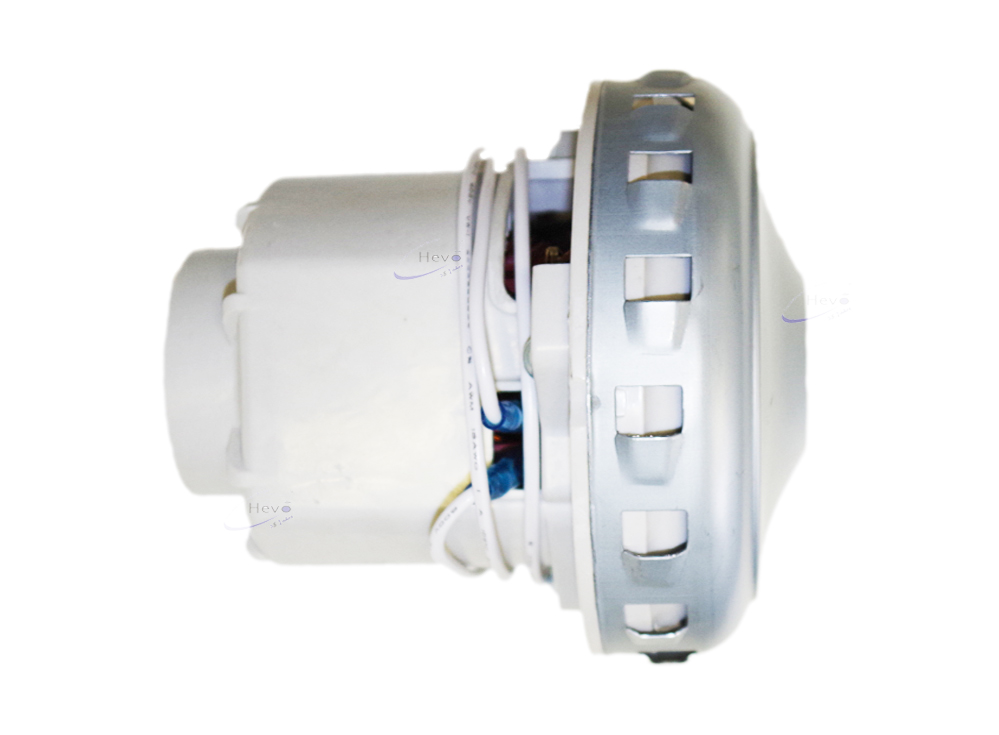

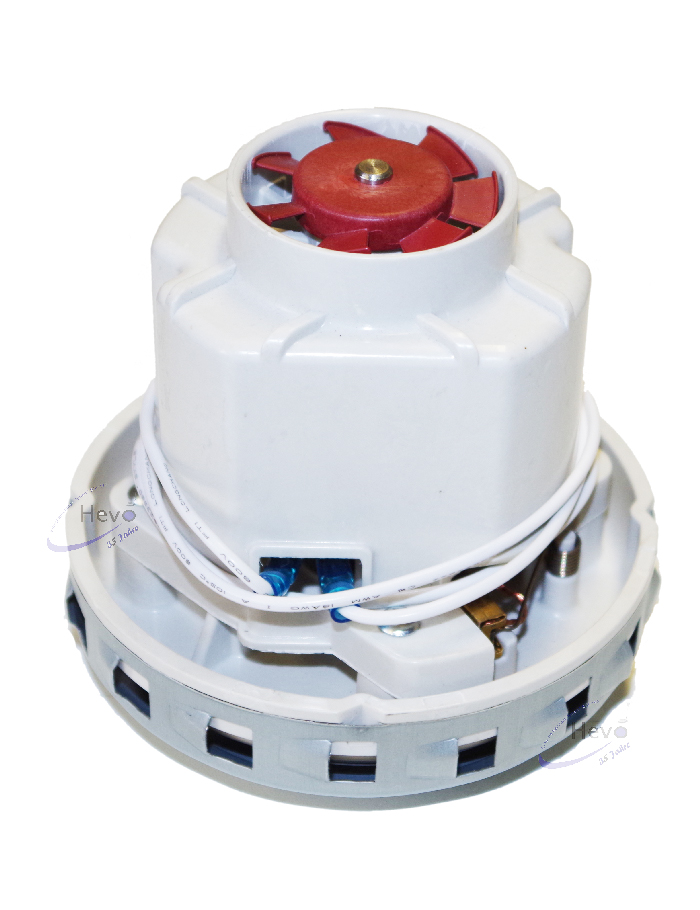

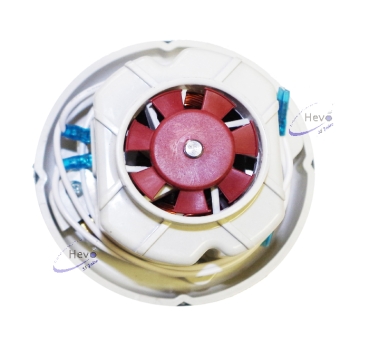

Vacuum motor for Mirka 1230 M AFC
For wet and dry vacuum cleaner.
TP = Thermal Protector, the engine shuts off when it overheats. Bypass - Motor i.e. separate intake and cooling air, the lower part is sealed off and the electrical equipment is cooled by a built-in cooling fan. Peripheral air outlet, i.e. The intake air is blown out through the engine slots.

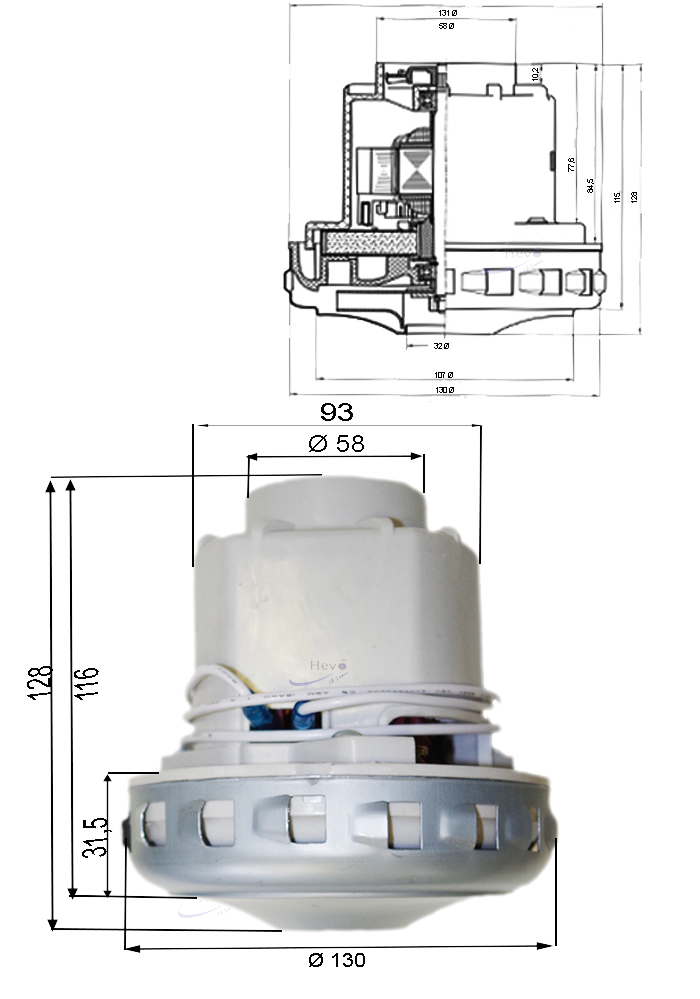

Overall height 128 mm, height 45 mm turbine, turbine diameter 134 mm.
This product is not an original spare part from the quoted manufacturer. Due to it is high quality the product is widely used by manufacturers, resellers and end users.
It is a product with the original manufacturer’s quality
| Motor Type | SMO.119 258-00 |
| Rating Voltage（V） | 230 |
| Rating Frequency（Hz） | 50 |
| Rating Input Power（W） | 1200 |
| Maximal Airflow（M³/min） | 3.9 |
| Maximal Suction（Kpa） | 27 |
| Maximal Air Power（W） | 450 |
| Maximal Efficiency（%） | 39% |
| Noise（M）（dBA） | ≤98 |
| Insulation Class | B |
| Lifespan | >500 |
-
Brand: Hevo-Pro-Line®
Manufacturer/EU Importer Responsible person
Fred Hellmann
Daimlerstr. 4
35447 Reiskirchen
Reiskirchen, Germany
Phone: +49 (0)6408 9599-0
Fax: +49 (0)6408 959910
Whatsapp +49 (0)15234108118
info@hevo-shop.com
Product safety:
All suction motors are safe to use when used properly. There are no known risks.
Warning:Please note that repairs may only be carried out by specialised personnel.
Installed suction motors will not be taken back.
Traceability:
We guarantee fast and complete traceability.
All suction motors fulfil the (EU) 2023/988 (GPSR), as well as the Reach and Rohs regulations.
